Nanostructured block copolymer single-ion conductors for low-temperature, high-voltage and fast charging lithium-metal batteries
Abstract
Herein, a single-ion polymer electrolyte is reported for high-voltage and low-temperature lithium-metal batteries that enables suppressing the growth of dendrites, even at high current densities of
Keywords
INTRODUCTION
Primary lithium-metal batteries (LMBs) provide energy densities far beyond any other electrochemical energy storage device and have been an everyday commodity since the 1970s[1], with energy densities of up to more than 700 Wh kg-1, which remain unmatched by any rechargeable battery. On the other hand, secondary LMBs, despite extensive efforts by electrochemists and material scientists for almost half of a century, were commercialized only in 2004, and they represent today a niche market compared to the dominant lithium (Li)-ion technology that uses a graphite anode instead of lithium metal. The latter, however, is closing the gap between its theoretical and practical energy densities. Thus, the current push for a decarbonized economy calls for a switch from graphite insertion anodes to lithium metal for a tenfold increase in specific capacity enabling longer drive-range electric vehicles (EVs).
LMBs, however, suffer from practical limitations that prevent them from competing with Li-ion batteries. The slow Li-ion transport at room temperature (and below) requires high operation temperatures, and the limited anodic stability of the polyether-based solid polymer electrolytes (SPEs) used implies using low voltage cathodes, which is detrimental to energy density. In fact, their operation temperatures could, in principle, decrease to 40 °C, thanks to strategies to make poly(ethylene oxide) (PEO)-based SPEs amorphous and conductive below the melting point of PEO[2,3]. However, the practical operation temperature of the current generation of commercial lithium-metal polymer batteries (LMPBs) is still above 70 °C, which requires either pre-heating or maintaining the temperature of the battery constantly elevated. Even at these temperatures, though, fast charging is impossible. It is due, on the one hand, to the rapid growth of lithium dendrites that occurs when the current density reaches a diffusion limit at which the lithium salt concentration gradients in the electrolyte are so steep that the lithium concentration at the lithium metal electrode reaches zero[4], which results in fast short-circuits. Additionally, inhomogeneous deposition of lithium usually occurs below this limit, mainly due to the passivation layer at the lithium surface, the so-called "Solid Electrolyte Interphase" (SEI)[5,6]. The SEI might induce an inhomogeneous current density, leading to protrusion of lithium metal and SEI cracking, snowballing to more inhomogeneous deposition and possibly local depletion of lithium that then triggers dendrite growth along local (spherical) salt concentration gradients[7], resulting in the formation of the so-called "mossy lithium" over cycling, which is extremely detrimental for cell performance and safety.
As lithium is a ductile metal, lithium protrusions can be tackled by using polymer electrolytes with sufficient mechanical stability[8] or engineering the interface[9-14] to prevent lithium protrusion (i.e., by mechanical confinement and ensuring homogeneous lithium transport) and the chain of events leading to mossy lithium growth below the limiting current density. However, the fundamental issue of lithium depletion both at high and moderate current rates is directly linked to anionic mobility and diffusion-controlled Li+ transport. Besides the problematic dendrite growth, diffusion-controlled Li-ion transport means that the electrolyte resistance increases during charge or discharge when the concentration gradients are steep (i.e., the currents are high). Thus, suppressing anion mobility logically results in a decreased internal resistance independent of current, thereby lowering heat generation and energy losses at high currents.
Since the 1990s, single-ion conductors with fixed anions have been proposed to prevent lithium depletion during charge[3,15-18]. Among these, rigid solid-state electrolytes, such as ceramics or glasses, impose finding solutions to buffer not only the large anode volume changes upon cycling but also those more limited cathode materials[19]. On the other hand, Elastomeric polyanions, which are lithium salts where the anionic moieties are linked to a polymer backbone, allow easier processing and buffering electrode volume changes, similar to SPEs that use a lithium salt dissolved in a polymer matrix. The achievement of a true single-ion conductor, however, also requires preventing polymeric chain reptation, which requires crosslinking. This can be done via classical chemical (covalent) crosslinking, but other strategies have been proposed for obtaining "physical’ crosslinking, for instance, using biphasic systems[20-22]. In this case, one "rigid" phase (i.e., crystalline or high Tg) is responsible for the mechanical properties, and the other phase ensures Li+ transport. This allows decorrelating Li+ mobility and mechanical properties, both usually linked to polymer chain mobility in monophasic systems. Recently, this approach has been extended to single-ion "dry" SPEs[23,24]. However, one issue arises for phase-separated systems that include a "dry" SPE phase, which is the need, in principle, to include solvating and ionic functions onto the same block while maintaining high chain segmental mobility, similar to "dry" single-ion monophasic SPEs. Thus, in general, polyether chains are used for ensuring solvation and Li+ mobility, which results in many of the same limitations as for conventional SPEs in terms of electrochemical stability window and operational temperature range. We recently reported on plasticized ionomeric block copolymers with nano-phase separation based on polyaromatic backbones able to operate a Li||LiNi0.33Mn0.33Co0.33O2 (NMC111) battery at 40 °C[25]. Here, we propose a plasticized single-ion SPE for fast-charging and low-temperature Li||NMC111 and Li||NMC622 high-energy LMPBs. Keeping large-scale production in mind, the electrolyte is obtained here via mechanical processing of the polymer powder incorporating a high dielectric constant liquid phase, which opens the route for high-volume production via extrusion and rapid implementation of the technology.
EXPERIMENTAL SECTION
Synthesis of polyanionic copolymers
The polyanionic copolymers noted as PTFSI-A/B are aromatic polyethersulfone multi-block copolymers with ionic blocks bearing lithium trifluoromethane sulfonimide (TFSI), abbreviated as LiTFSI, and hydrophobic blocks with high glass transition temperatures, i.e., partially fluorinated polysulfone. The A and B are related to the lengths of ionic and hydrophobic block backbones, respectively. In a typical example, i.e., a copolymer named PTFSI-10/5 [Scheme 1], the hydrophobic block with a glass transition temperature (Tg) of 220 °C and a molecular weight of 5,000 g mol-1 alternates with the ionic block. The ionic block has a molecular weight of 10, 000 g mol-1 in the block backbone and two LiTFSI functions per structural unit. The synthesis of these copolymers, carried out in three steps, i.e., (i) backbone copolymer synthesis by a polycondensation reaction; (ii) bromination of an ionic block; and (iii) grafting of TFSI lithium salt by coupling reaction, was described previously[25-27]. Copolymers with high molecular

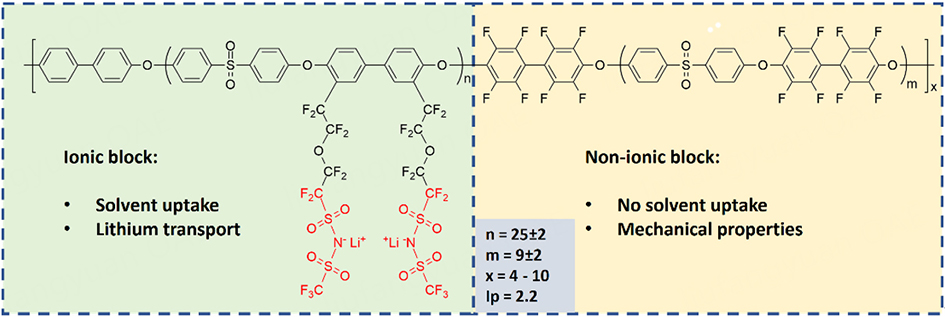

Scheme 1. Schematic representation of PTFSI-10/5.
Polymer electrolyte processing
The copolymer powder was dried under vacuum at 100 °C for 24 h before use. Propylene carbonate (PC, BASF, Selectipur(TM)) was dried and kept on 4 Å molecular sieves. The polymer electrolytes were prepared in a dry room with a dew point of -65 °C (i.e., H2O < 5.4 ppm). The copolymers and PC were mixed in various PTFSI/PC weight ratios, and the mixtures were sealed in a laminated "pouch bag” under vacuum and stored at 70 °C for 24 h to ensure good uptake of the liquid phase. The mixture was then sandwiched between two Mylar foils. After pressing at 10 bar for 5 min at room temperature (using another 100-µm Mylar foil as a spacer), self-standing polymer electrolyte membranes were obtained. In the following, the electrolytes are named according to the polymer name, followed by the PC weight fraction in the membranes (e.g., PTFSI-10/5-70 for a SPE containing 70 wt.% of PC).
Conductivity measurements
For conductivity measurements, 2,032 coin cells, including stainless steel (SS) electrodes and the polymer electrolyte membranes, were prepared. The bulk resistance (Rb) of the polymer electrolytes was extracted from the electrochemical impedance spectroscopy (EIS) of the coin cells and determined using a Novocontrol Alpha-A analyzer equipped with a ZG2 extension interface and a cryostat for temperature control in the frequency range of 1 MHz to 1 Hz with a voltage amplitude of 10 mV. The temperature was first ramped from 20 °C to 80 °C and then from 80 °C to -5 °C with 30 min stabilization at each temperature. The conductivity (σ) was calculated according to Equation (1):
where d is the thickness of the polymer electrolyte membranes (100 µm), and S is the area of the electrodes (12 mm diameter).
For measuring the conductivity of the 1M LiTFSI, PC reference liquid electrolyte, a Biologic MSC10 multichannel, EIS-based conductivity meter was used with conductivity cells with a cell constant of ca. 1, calibrated prior to each measurement with a standard KCl solution.
Determination of the Li+ transport number
The Li-ion transport number (t+) can be calculated using the self-diffusion coefficients of the ionic species in the electrolyte. These coefficients are obtained through pulsed field gradient nuclear magnetic resonance (PFG-NMR) measurements with a Bruker Advance III HD spectrometer equipped with a diffusion probe of 5 mm and a temperature regulation unit. The frequencies are 376.50 and 155.51 MHz for 19F and 7Li, respectively. The maximum magnitude of the pulsed field gradient was 900 G.cm-1, the diffusion delay Δ was adjusted between 50 and 100 ms, and the gradient pulse length δ was set between 1 ms and 5 ms. Data acquisition and treatment were performed with Bruker Topspin software. The t+ was calculated with Equation (2):
where DLi is the self-diffusion coefficient of the Li+, and DF is the self-diffusion coefficient of the anion[28].
Small-angle neutron scattering
Small-angle neutron scattering (SANS) measurements were performed on the small-angle diffractometer KWS-1 operated by the Forschungszentrum Juelich at the Heinz Maier-Leibnitz Zentrum in
Electrochemical characterization
Symmetric Li‖Li cells were assembled to investigate the lithium electrode cycling behavior. 330 µm Li foils (Rockwood Lithium) were used in combination with either 1M LiTFSI in PC comprised in a Whatman
For the study of the Al current collector corrosion, cyclic voltammetry (CV) was performed on a VMP3 potentiostat (Biologic) with Li‖Al two-electrode coin cells between 3.0 and 5.0 V. The sweep rate was
RESULTS AND DISCUSSION
Polymer electrolyte processing and characterization
More often than not, block copolymers designed for nano-phase separation require a careful selection of the solvent for casting membranes with a well-defined phase separation upon solvent removal. We showed previously, for a similar polymer with longer blocks and a higher fraction of "rigid phase" (PTFSI-15/15), that the solvent used to cast the dry membrane affects the phase separation. Specifically, we found that dimethyl sulfoxide (DMSO) allows for a sharp hydrophobic-ionic phase separation and a more regular phase structure as compared with dimethylacetamide (DMAc). Nevertheless, in both cases, SANS measurements unambiguously revealed a clear phase separation and a constant non-ionic domain size upon ethylene carbonate (EC) uptake[25]. The hydrophobic block, i.e., partially fluorinated copolymer, was designed to be non-miscible with high dielectric constant solvents, such as EC and PC. However, solvent casting, followed by the removal of a high boiling point solvent, such as DMSO or DMAc, and the dry membrane swollen by the suitable solvent(s), is a lengthy and energy-consuming process, thus a priori too costly for a future scale-up of such technology. Therefore, in the current study, we processed the electrolytes using solely the eventually comprised liquid phase (i.e., PC) and the polymer powder. A mixing step at a moderate temperature (70 °C) was followed by a pressing step in a laboratory-scale process mimicking the extrusion of a membrane with the liquid phase. PC was used instead of EC to avoid any crystallization down to the melting point of PC (-48.5 °C), even at high solvent contents. In fact, herein, a PC content of up to
SANS measurements were performed to assess the phase separation. The results are shown in Figure 1A for the PTFSI-based polymer with 30 wt% of PC with increasing ionic block length: PTFSI-5/5-30 [i.e., with ionomeric and (respectively) non-ionic blocks of 5,000 g mol-1 and 30 wt% PC], PTFSI-10/5-30, and PTFSI-15/5-30 to compare the different block copolymers. On the other hand, the effect of increasing solvent fractions is shown for PTFSI-10/5. The phase separation is overall less marked than what was obtained with DMSO-cast membranes but similar to EC-membranes obtained using DMAc as the casting solvent. The comparison of the different polymers shows that the PTFSI-15/5-30 phase separation is less marked than for the membranes with shorter ionic blocks (PTFSI-5/5-30 and PTFSI-10/5-30). The phase separation of the PTFSI-10/5 electrolytes is well maintained with increasing PC content, and all electrolytes exhibit a hydrophobic domain size of 13 nm.

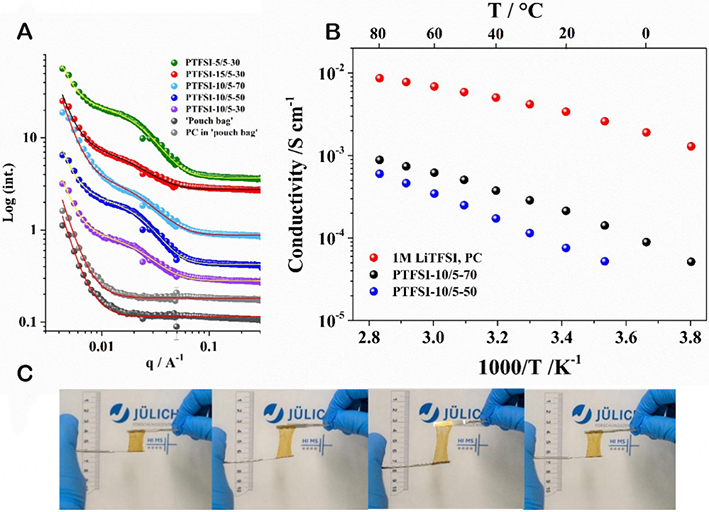

Figure 1. (A) SANS spectra of various single-ion polymer electrolytes and reference cells. (B) Conductivity of PTFSI-10/5-50, PTFSI-10/5-70, and 1M LiTFSI, PC. (C) Illustration of the elastic behavior of the PTFSI-10/5-70 electrolyte.
The conductivity of the PTFSI-10/5-70 electrolyte shown in Figure 1B is ca. ten times lower than that of the liquid reference (1M LiTFSI in PC). It must be noted, however, that the liquid electrolyte requires the use of a separator to be used in battery cells that would induce a decrease by a factor of 10 of the conductance of the (electrolyte + separator) assembly[29]. Besides, the conductivity is linked to anions and cations for the liquid electrolyte. Probably due to poorer phase separation of hydrophobic domains and thus a more tortuous ionic pathway, in this case, the ionic conductivities are somewhat lower than those previously reported for EC-plasticized membranes obtained via DMSO casting and subsequent swelling. The PTFSI-10/5-70 membrane, however, still reaches 2.15 × 10-4 S cm-1 at 20 °C and 8.98 × 10-5 S cm-1 at 0 °C, which, for a single-ion conductor that is able to maintain a fast lithium transport at steady-state is, in principle, sufficient for the application[30].
In fact, even the electrolyte with the highest PC content (PTFSI-10/5-70) exhibits a t+ of 1 as no diffusion was detected for the anionic moiety, even at 90 °C (see Table 1). A Li+ self-diffusion coefficient of
Self-diffusion coefficients at different temperatures derived from PFG-NMR measurements and lithium transport numbers calculated via Equation (1) for the PTFSI-10/5-70 electrolyte
| T (°C) | DLi (10-10 m2 s-1) | DF (10-10 m2 s-1) | t+ |
| 30 | 0.31 ± 0.01 | No measurable diffusion | 1 |
| 50 | 0.57 ± 0.02 | No measurable diffusion | 1 |
| 70 | 0.95 ± 0.03 | No measurable diffusion | 1 |
| 90 | 1.49 ± 0.04 | No measurable diffusion | 1 |
With a lithium content of 1.15 × 10-3 mol g-1 in the dry PTFSI-10/5 polymer, if we postulate a density of 1.2 for the final electrolyte, the lithium content in the plasticized electrolyte corresponds to ca. 0.29 mol L-1. This is relatively low compared to the most conductive concentrations in most organic lithium conducting electrolytes [e.g., PEO/IL/LiTFSI (plasticized or not) electrolytes or LiTFSI in PC]. Hence, it is likely that increasing the grafted lithium salt concentration would lead to improved conductivity as an effect of increased charge carrier concentration. Noticeably, the PTFSI-10/5-50 electrolyte exhibits a conductivity close to that of the PTFSI-10/5-70 electrolyte at high temperatures, indicating that the higher charge density, resulting from the lower PC content, is favorable at higher temperatures (where ionic mobility is higher). If we calculate the theoretical conductivity from the Nernst-Einstein equation (Equation 3) and DLi, we reach a molar conductivity of 1.14 S cm2 mol-1 and a Li+ conductivity of 3.3 × 10-4 S cm-1 at 30 °C, which is only 12% higher than the experimentally determined value of 2.9 × 104 S cm-1. This is in excellent agreement with single-ion conductivity and indicates that the ionic functions are well dissociated. The small difference can be easily accounted for (besides the experimental errors and the hypothesis on density) by the presence of the non-conductive phase.
With Ʌe the molar conductivity (S cm2 mol-1), F the Faraday constant (96,485 C mol-1), R the gas constant (8.31 J mol-1 K-1), T the temperature (K), and D+ and D- the diffusion coefficients (cm2 s-1) of the Li+ and anions.
The electrochemical stability window shown in Supplementary Figure 1 is rather wide, with only a very low background current prior to lithium deposition in the cathodic scan, and the stability toward oxidation is seemingly higher than that of the 1M LiTFSI in the PC electrolyte and similar to that of the EC-plasticized membranes[25]. A small peak around 4.5 V can be observed, as previously reported for PTFSI-15/15 with
Lithium metal electrode cycling and high-voltage lithium cells
The operation of the lithium metal anode is not only dependent on the electrolyte bulk transport properties but also on the formation of a favorable SEI layer at the interface between lithium metal and electrolyte. On the one hand, the cell assembly process should not induce inhomogeneity for lithium transport pathways, and the "softness" of the PTFSI-10/5-70 electrolyte is favorable in this regard. Indeed, hard contact points would be likely to induce cracks in the passivation layer already present on the lithium foil following its production by extrusion in dry air or Ar/CO2 and result in inhomogeneous lithium transport. On the other hand, the resistance of the SEI should allow fast lithium transport and not be the limiting factor. In fact, it is known from IL-electrolytes[32] or ternary IL-plasticized polymer electrolytes[33] that the SEI resistance often represents a much higher hindrance to Li+ transport than that of the IL-free electrolyte, especially at ambient and sub-ambient temperature.
Figure 2A compares the voltage profiles of symmetrical Li||Li cells using either the liquid reference electrolyte (1M LiTFSI in PC) within a thick glass fiber separator or a PTFSI-10/5-70 membrane. As can be seen, with the liquid reference electrolyte, the overvoltage first decreases as the surface area of lithium increases but then continuously increases. This can be explained by the formation of mossy lithium during plating that leaves behind, upon lithium stripping, electronically disconnected lithium residues mixed with electrolyte reduction products, which ends up forming a mixed layer that slows down Li-ion transport[34]. When analyzing the voltage profiles shown in more detail (see the inserts), one can see, at the beginning of each step and after the immediate polarization of the cell, an asymptotic exponential increase to a steady-state voltage as concentration gradients are getting established, thereby increasing the electrolyte resistance. The corresponding impedance spectra [Figure 2B] reveal that the impedance of the cell strongly evolves upon cycling. In the beginning, only one well-defined semi-circle corresponding to the SEI resistance is observed that decreases accordingly with the increase of surface area upon initial plating/stripping. However, it is compensated by the appearance of a second flattened semi-circle at lower frequencies and even a third one after longer cycling. This can tentatively be attributed to the plating and stripping of mossy lithium and the formation of a thick layer, at a larger scale, unfavorable for Li-ion transport. In fact, Figure 2D shows the aspect of a lithium metal electrode after a single lithium plating of
Figure 2. (A) Voltage profiles of Li/Li symmetrical cells using either 1 M LiTFSI in PC (+ Whatman GF/D as separator) or
On the other hand, the voltage profiles of the cells using a PTFSI-10/5-70 membrane as electrolyte have a square shape, with no evidence of internal resistance change during any step, neither at the beginning nor at the end of the cycling, which confirms that lithium transport is time-independent due to the single-ion conduction. Over cycling, the overvoltage is essentially constant, with, however, a small decrease over cycling that can be attributed to a slight increase in lithium surface area. Indeed, even though single-ion conduction prevents "top grown" dendrites, SEI inhomogeneities might still induce an increase of surface area. In fact, after the plating of 10 mAh cm-2 of Li (i.e., roughly 50 µm) at 1 mA cm-2, it can be seen from Figure 2E that the deposited Li is not fully flat, although there is no evidence of dendrites. In line with this, the evolution of impedance spectra reveals that the resistance of the electrolyte is much lower (due to a much thinner electrolyte, ca. 100 µm) and that the SEI resistance (corresponding roughly to the diameter of the semi-circle) is quite constant over cycling [Figure 2C]. A minimal decrease in resistance can be attributed to the slight increase of surface area but in a much lower proportion compared to that of the liquid electrolyte since no dendrite is formed in the former case. The SEI resistance is also very low, which is an additional feature of this electrolyte and can tentatively be attributed to the high fluorine content of the polymer, favorable for forming a thin and protective SEI and the limited polymer and anion degradation due to their immobility[35].
These current rates are very high for LMPBs (which typically include lower mass loading per surface area to compensate for low current densities) and especially remarkable, considering that the lithium metal used is a regular lithium foil kept in a glovebox and that further improvement could be enabled by tuning the pressure applied and by lithium/electrolyte interface optimization since fully homogenous plating of lithium metal is a multi-parameter issue.
To demonstrate the applicability of the electrolyte membrane for high-voltage and high-energy lithium metal cells, several cathode materials have been tested at 20 °C. LFP is the state-of-the-art for LMPBs and showed excellent cycling behavior at 20 °C [Supplementary Figure 2]. Since the main target of switching from PEO-based electrolytes is the achievement of high-voltage lithium metal cells that are able to operate at ambient and sub-ambient temperatures, NMC cathodes have been studied as well. Figure 3 shows the cycling performance obtained at various current densities with NMC111 cathodes. The current densities are calculated, in this case, based on the lithium metal surface area. The capacity decays relatively fast with increasing current densities compared to what was expected from the Li‖Li cells. It likely results from the cathode preparation, which has not been optimized yet. Indeed, even though some PTFSI-10/5 was incorporated into the NMC111 electrodes to favor ionic contact with the electrolyte membranes, the electrodes used are still porous, whereas an optimized cell would use dense electrodes instead (i.e., have all the porosity filled with polymer electrolyte). Nevertheless, cycling is possible using various current densities of up to 1 mA cm-2. If we consider a typical Li-ion battery mass loading of ca. 2 mAh cm-2 (i.e., typical for a PHEV2 battery cell for plug-in hybrids), the current densities of 0.25, 0.5, and 1 mA cm-2 would correspond to C/8, C/4, and 1C, respectively. As can be seen, the cycling is very stable at all of these current densities. Long-term cycling (up to 500 cycles) was possible and is shown for the two higher current rates in Supplementary Figure 3.

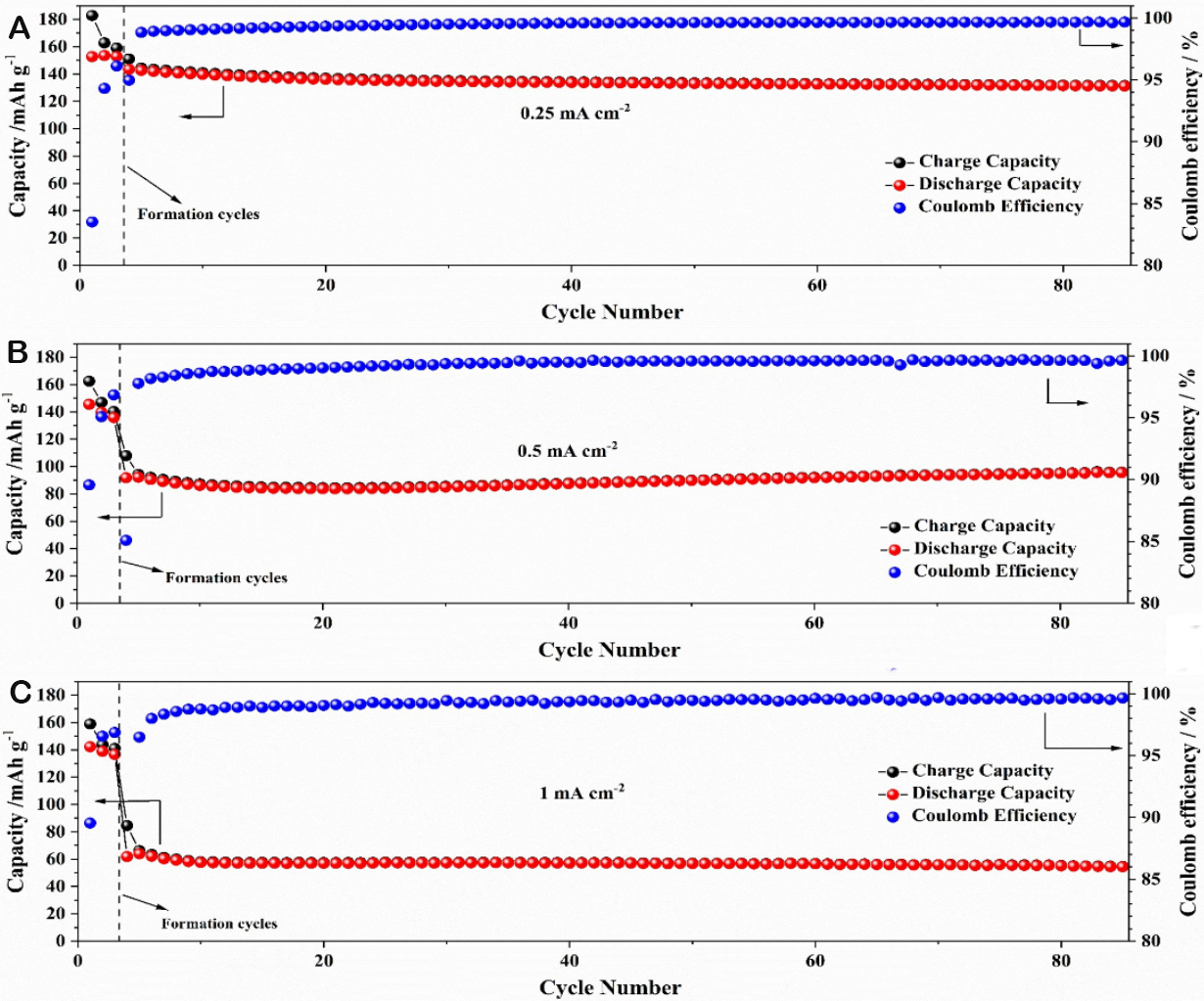

Figure 3. Cycling of Li/NMC111 cells at 20 °C. (A) 0.25 mA cm-2, (B) 0.5 mA cm-2, and (C) 1 mA cm-2.
The state-of-the-art for automotive applications has shifted from NMC111 to NMC622, which is, at the same time, less costly in terms of raw materials, less toxic, and more ethical considerations. NMC622 achieves these benefits by incorporating the lower Co content while providing higher energy densities. Thus, we also constructed Li‖NMC622 cells and their behavior at 20 °C, as shown in Figure 4A and B. The rate performance is good up to C/2 with capacities above 120 mAh g-1, and most importantly, for lithium metal cells, the relatively high rates used for the rate test do not induce any decay of performance upon returning to C/2.
Figure 4. (A) Rate capability test of a Li/NMC622 cell at 20 °C, (B) Corresponding voltage profiles, (C) Rate capability test of a Li/NMC622 cell at 0 °C, (D) Corresponding voltage profiles.
Since the electrolyte membrane contains PC, the electrolyte is still flammable, although PC exhibits a much lower vapor pressure (0.2936 kPa at 25 °C[36]) than the linear alkyl carbonates commonly used in Li-ion electrolytes. PC also exhibits a high flash point (Fp) of 132 °C (vs. < 30 °C for dimethyl carbonate, diethyl carbonate, and ethyl methyl carbonate commonly used in most Li-ion batteries electrolytes). Nevertheless, the polymer can also be used with very high boiling points and low vapor pressure solvents such as adiponitrile (Bp = 295.1 °C, vapor pressure = 300 mPa at 20 °C) that also allows cycling Li‖NMC111 cells at
Investigation of the aluminum corrosion
Since the electrolyte comprises pending anionic moieties that have a chemical structure similar to the TFSI anion and given the fact that LiTFSI is known to induce corrosion of the Al cathode current collector above 4 V, it is important to evaluate the behavior of the polymer electrolyte toward Al at high voltage for the application.
Figure 5 provides a comparison of the Al corrosion behavior of the polymer electrolyte membrane and the liquid reference electrolyte based on 1M LiTFSI. In the case of the single-ion polymer electrolyte, a very low anodic current is observed in the first cycle (< 5 µA cm-2, insert in Figure 5A), with a slight increase above 4.5 V, especially during the first scan. Nonetheless, even at this high voltage, the evolving current density remains below 1 µA cm-2. In sharp contrast, the liquid reference electrolyte containing LiTFSI induces strong Al corrosion, resulting in evolving current densities exceeding 2 mA cm-2. Representative photographs and SEM images are presented in Figure 5C and D, confirming the absence of Al corrosion in the case of the polymer electrolyte and the severe Al corrosion in the case of the liquid reference electrolyte, respectively.

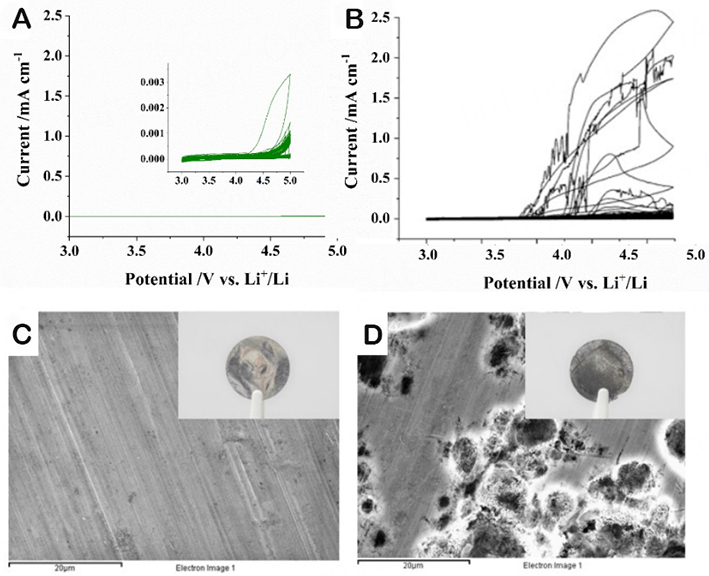

Figure 5. Voltammograms profiles of Li/Al cells using (A) PTFSI-5/10-70 or (B) 1 M LiTFSI in PC (+ Whatman GF/D as separator) as electrolyte at 23 °C. SEM images of the Al electrodes after the tests with (C) PTFSI-5/10-70 and (D)1 M LiTFSI in PC (+ Whatman GF/D as separator).
CONCLUSIONS
The electrolyte PTFSI-10/5-70 allows for overcoming many issues that are limiting the penetration of LMPBs into the booming market of EVs. In particular, it tackles the low operation temperature issues of such devices, decreasing their potential operation to sub-ambient temperatures as low as 0 °C. Its high anodic stability enables the use of NMC cathodes rather than LFP and, thus, higher energy densities. Most importantly, it allows reaching high lithium plating current densities of 2 mA cm-2 with lithium metal due to its single-ion conductivity (despite a rather low charge density that leaves room for further improvements) combined with favorable interfacial properties with lithium metal. This opens the route, combined with future optimized cathodes, to fast-charging LMBs. It is especially promising as the polymer electrolyte was obtained following a straightforward process based on mechanical mixing of the components and pressing, which can be easily translated into high-volume industrial production, for instance, by extrusion. Finally, since the dendrite growth is fully prevented and high currents are possible, this electrolyte will allow removing the dendrite from the equation for addressing the protrusion of lithium metal, which requires full control of the lithium metal interface in terms of homogeneity of current densities and mechanical properties.
